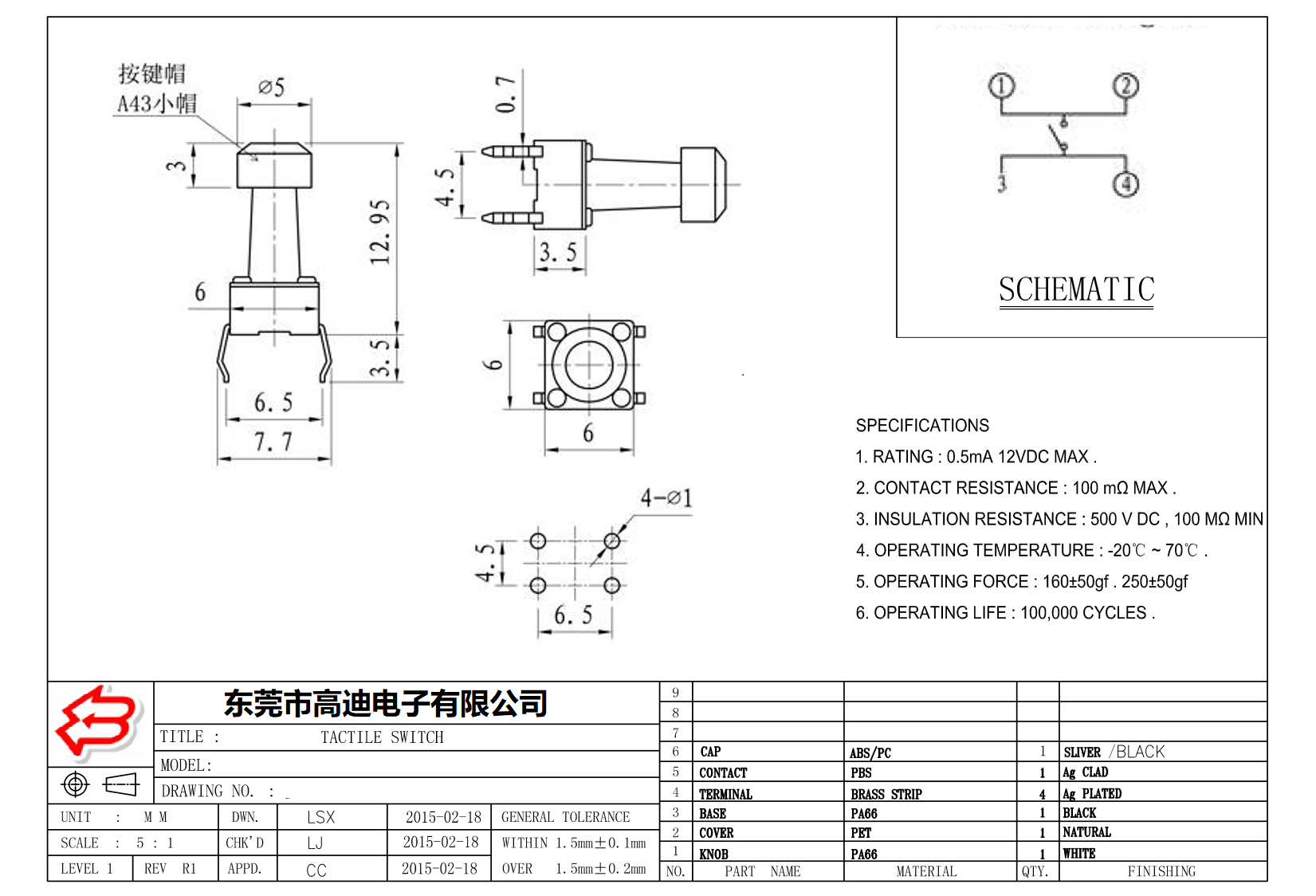

產品名稱 TR-129

產品規格


轻触开关技术参数:

1. 额定负荷: DC 12V   50mA            2. 接触阻抗100mΩMAX

3. 绝缘阻抗: DC 250V 100mΩ      4. 耐焊温度: 250±5° 5s

5. 使用寿命: 100,000 cycles           6.使用温度: -25  to 80

7. 使用湿度85% RH                 8. 操作力: 250gf

9. 按键帽颜色可选                         10. 电路类型 触动式

应用:安防、工控设备、通讯产品、家用电器、智能交通等。





Technical parameters of  tact switch:



1. Rated load: DC 12V 50mA

2. Contact impedance: 100mΩMAX

3. Insulation resistance: DC 250V 100mΩ

4. Soldering resistance temperature: 250±5° 5s

5. Service life: 100,000 cycles

6. Operating temperature: -25 to 80

7. Operating humidity: 85% RH

8. Operating force: 250gf

9. The color of the button cap is optional

10. The circuit type is touch type



Application: Security, industrial control equipment, communication products, household appliances, intelligent transportation, etc.
