带灯轻触开关技术参数：

1. 额定负荷: DC 12V   50mA LED：20V    2. 接触阻抗: ≤100mΩMAX

3. 绝缘阻抗: DC 250V ≥100mΩ     4. 耐焊温度: 250±5° 5s

5. 使用寿命: 100,000 cycles 6.使用温度: -25 ℃ to 80 ℃

7. 使用湿度: ≤85% RH        8. 操作力: 250gf

9. LED颜色可选                        10. 电路类型 触动式

应用：安防、工控设备、通讯产品、家用电器、智能交通等。

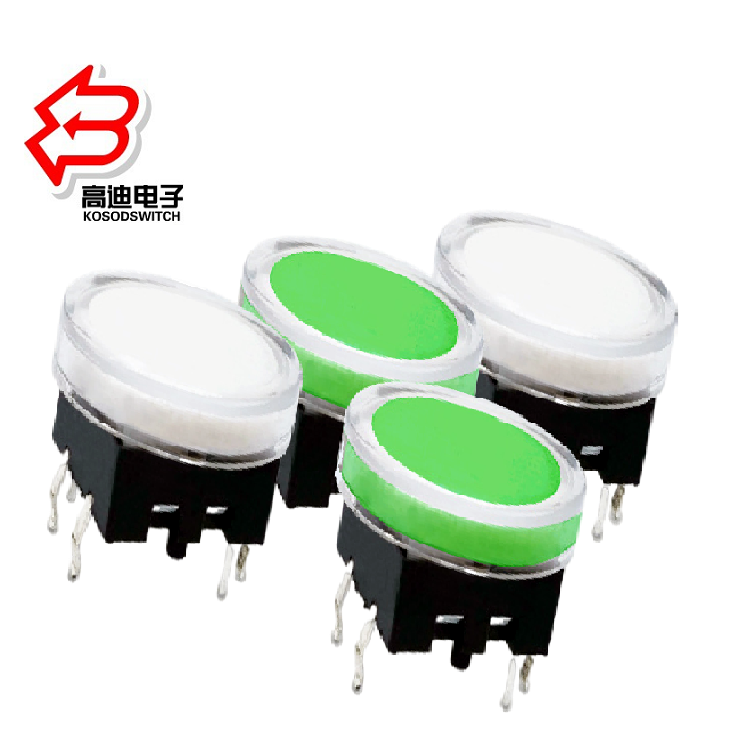

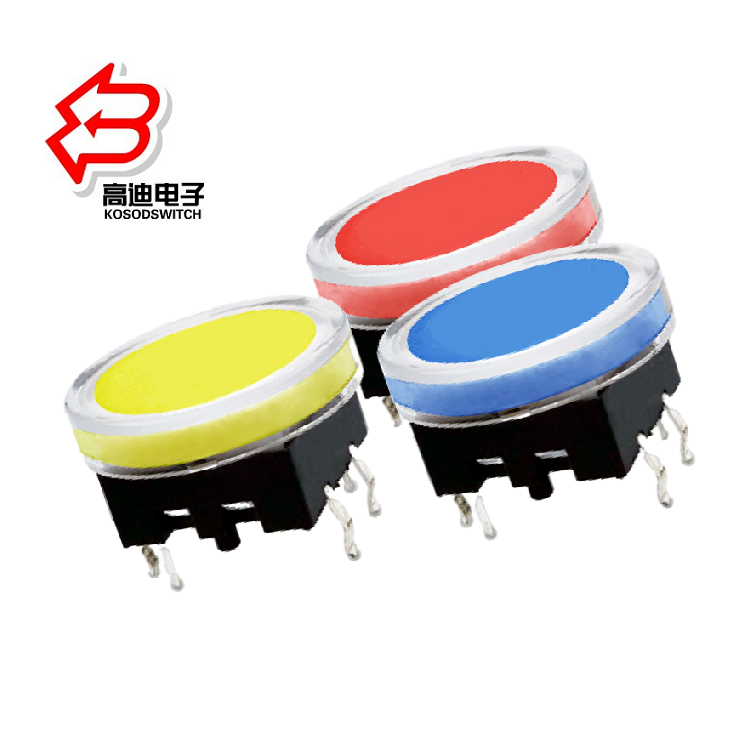

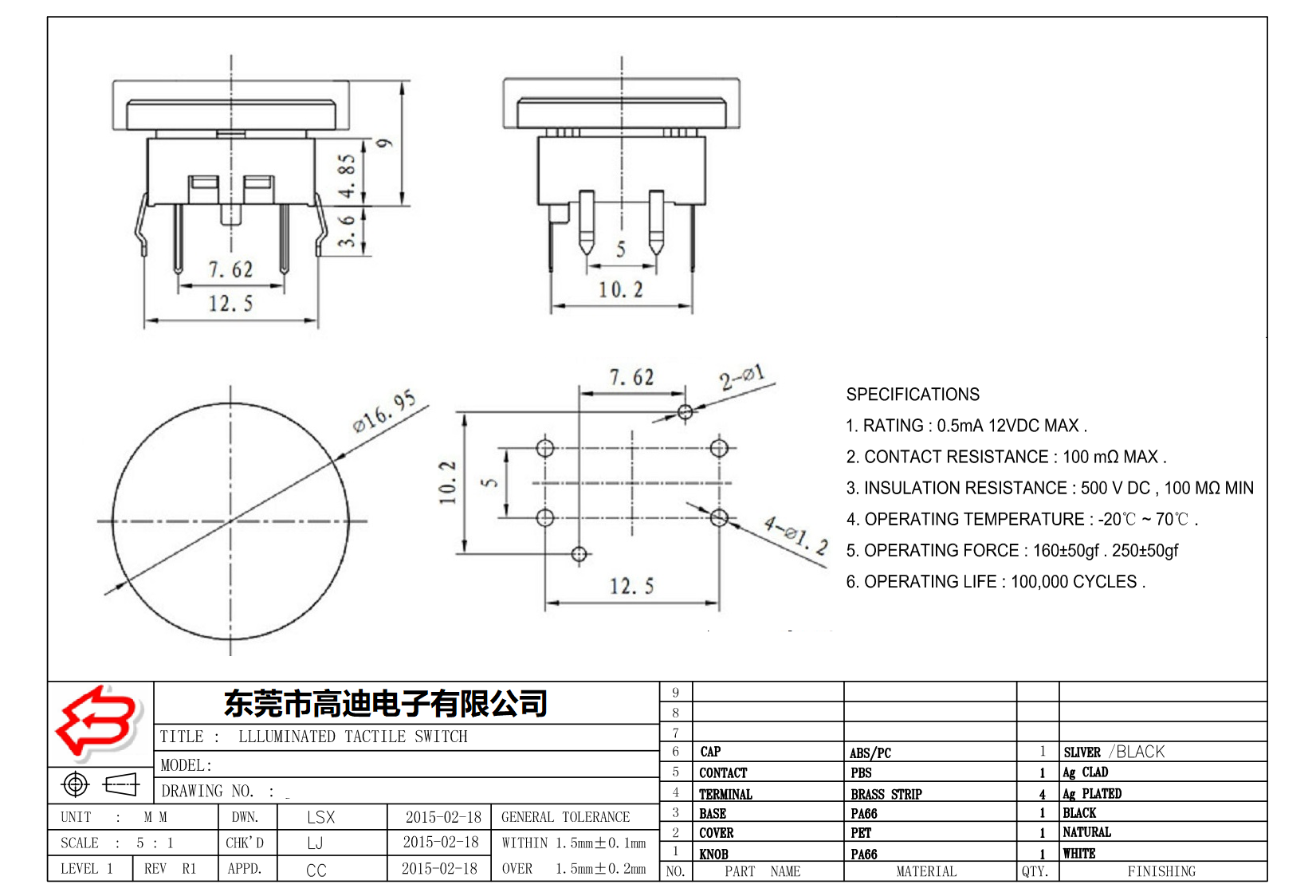

Technical parameters of light tact switch with light:

1. Rated load: DC 12V 50mA LED: 20V 2. Contact impedance: ≤100mΩMAX

3. Insulation resistance: DC 250V ≥100mΩ 4. Soldering resistance temperature: 250±5° 5s

5. Service life: 100,000 cycles 6. Operating temperature: -25 ℃ to 80 ℃

7. Operating humidity: ≤85% RH 8. Operating force: 250gf

9. LED color optional 10. Circuit type touch type

Application: Security, industrial control equipment, communication products, household appliances, intelligent transportation, etc.

、
